Indawo yokukhanya kwe-PL023

Inkcazo emfutshane:

Ulwandle lweBanga le-316 intsimbi engenasici engenanto encinci yomgangatho ophakamileyo egcwaliswe ngeglasi ye-CREE ye-LED yeglasi, isixhobo esilinganiswe kwi-IP68 sivumela ukuntywiliselwa emanzini ngenxa yoko kushenxiswa Imiba eqhelekileyo evela kukungabikho komjelo womhlaba. 20/45/60 degree boram. Imithombo iqinisekisa ukhuselo olomeleleyo ngokuchasene nokungena kwamanzi.imveliso iqhuba iintlanganiso ezipholileyo kuyo yonke imilinganiselo yeqondo lobushushu. Ukukhanya kwendawo encinci yangaphandle kunye namandla 3 * 1W kunokusetyenziswa njengokukhanya kweasher eludongeni, ukukhanya kwendawo yokuhlala, ukukhanya kwendawo yegadi. Inika ukhetho lwemibala ekhanyayo: RGB, CW, WW, NW, Red, Green, Blue, Amber. Uthotho losapho oluqulathe iML1021, PL021, PL023, kunye ne-PL026. Unokubona imbonakalo ukusuka kwincinci ukuya enkulu kwiphepha lasekhaya lewebhusayithi yethu ngokungaphezulu. U-EURBORN uzibophelele ekukhathaleleni iinkcukacha ezingakhathalelwanga ngabanye. Kuzo zonke iinkozo ezilungileyo kwimveliso, sisebenzisa ezona zinto zilungileyo kunye nokulungiswa kwezikrufu. Ingasetyenziselwa ukusetyenziswa kwezibane zangaphandle zetsimbi, izibane zensimbi ezingenasici kunye nezibane zokungena kwamanzi.

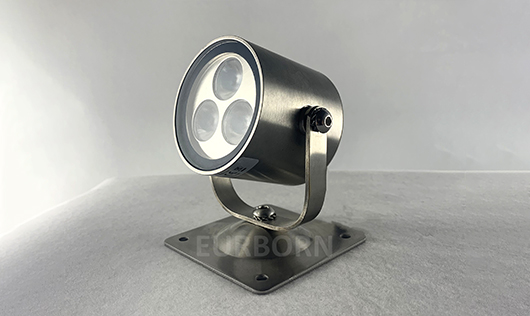

PL023

Iinkcukacha Product

Ezothutho kunye nokupakisha

Uvavanyo lwemveliso

Isatifikethi

Sahlukile

Iimpawu zemveliso

Ukudubula ngokwasemzimbeni

1

INKCAZELO

Umthombo wokukhanya kwe-LED Amandla ePhakamileyo ePhakamileyo
Umbala wokuKhanya RGB, CW.WW, NW, Bomvu, Luhlaza, neBlue, Amber
Izinto eziphathekayo SUS316
Ukukhanya I-S2O ° / F6O °
Amandla 3x1W
Ukunikezwa amandla N / A

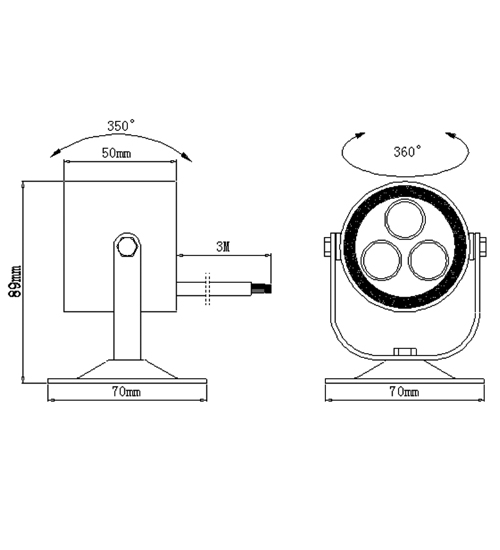

Ubungakanani 70x70x89
Ubunzima I-750g
Umgangatho we-IP IP68
Iimvume I-CERoHS.IP
Ubushushu obugciniwe -20 ° C ~ + 45 ° C
Umndilili wobomi 5O, OOOHrs
Izixhobo (Ngokuzithandela) N / A
Izicelo Ngaphakathi / ngaphandle / Indawo yokuma komhlaba / ukuntywila

I-PL023 YOKUKHANYA KWENDAWO

UMZEKELO NO. Uhlobo lwe-LED Umbala Umqadi IPowerMode Igalelo Iingcingo Intambo Amandla I-Flux ekhanyayo Ubungakanani Qhuba ubungakanani
I-PL023 CREE I-CW, WW, NW, Luhlaza oBomvu, Luhlaza okwesibhakabhaka, Amber S20 / F60 Okwangoku I-350mA Uthotho 3M 2X0.75mm² Intambo 3W 300LM 70x70x89 N / A
I-PL023D CREE I-CW, WW, NW, Luhlaza oBomvu, Luhlaza okwesibhakabhaka, Amber S20 / F60 Umbane oqhubekayo 24VDC Iyafana 3M 2X0.75mm² Intambo 3.5W 300LM 70x70x89 N / A
I-PL023RGB Edison RGB 10/20/45/60 Okwangoku I-350mA Uthotho 2x3M 4X0.5mm² Intambo 9W N / A 70x70x89 N / A
I-PL023DMX-RGB Edison RGB 45 Umbane oqhubekayo Umlawuli we-24VDC DMX Iyafana Intambo ye-1.1M 4X0.5mm² 3.5W N / A 70x70x89 N / A
Ikhowudi ye-DMX eyakhiweyo * IES Inkxaso yedatha.

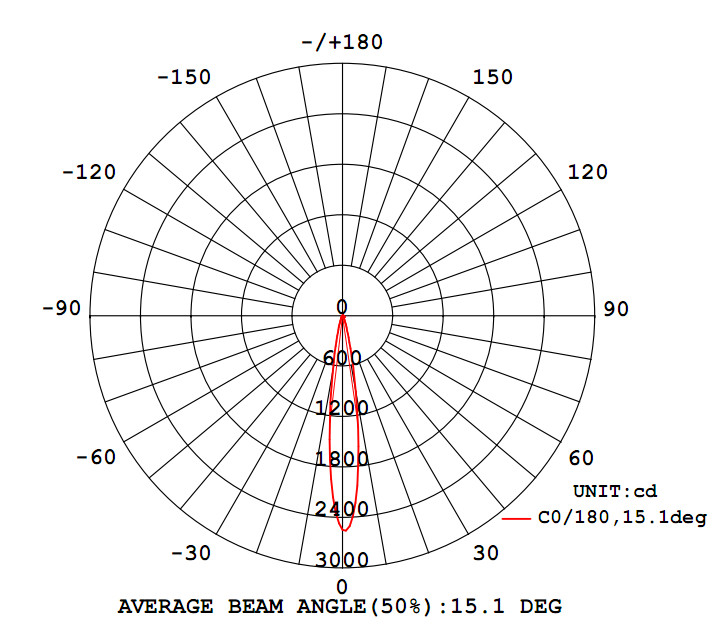

PL023-2

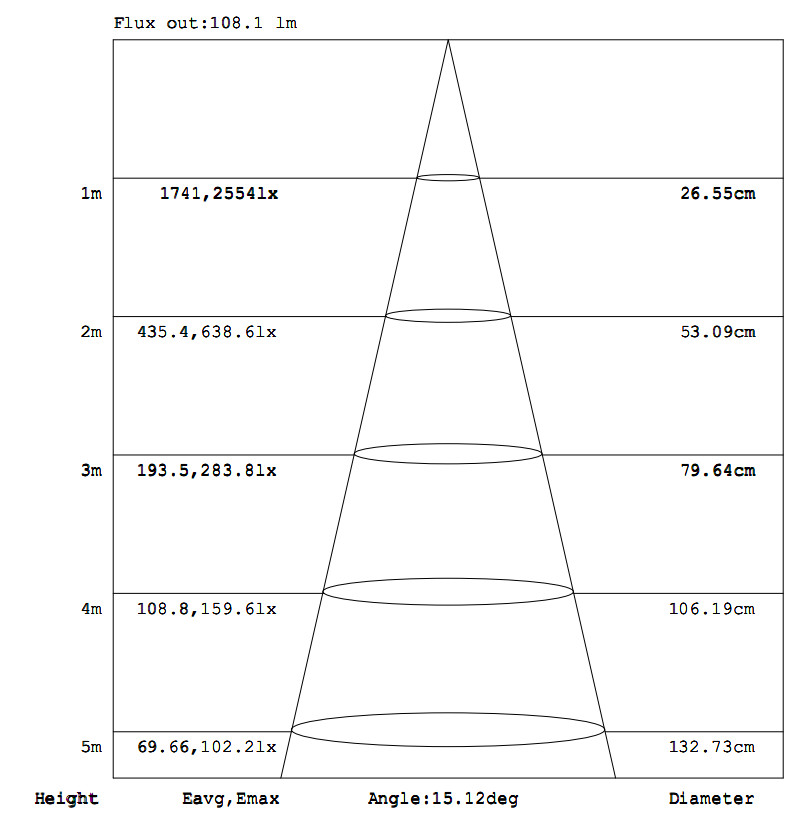

PL023-1

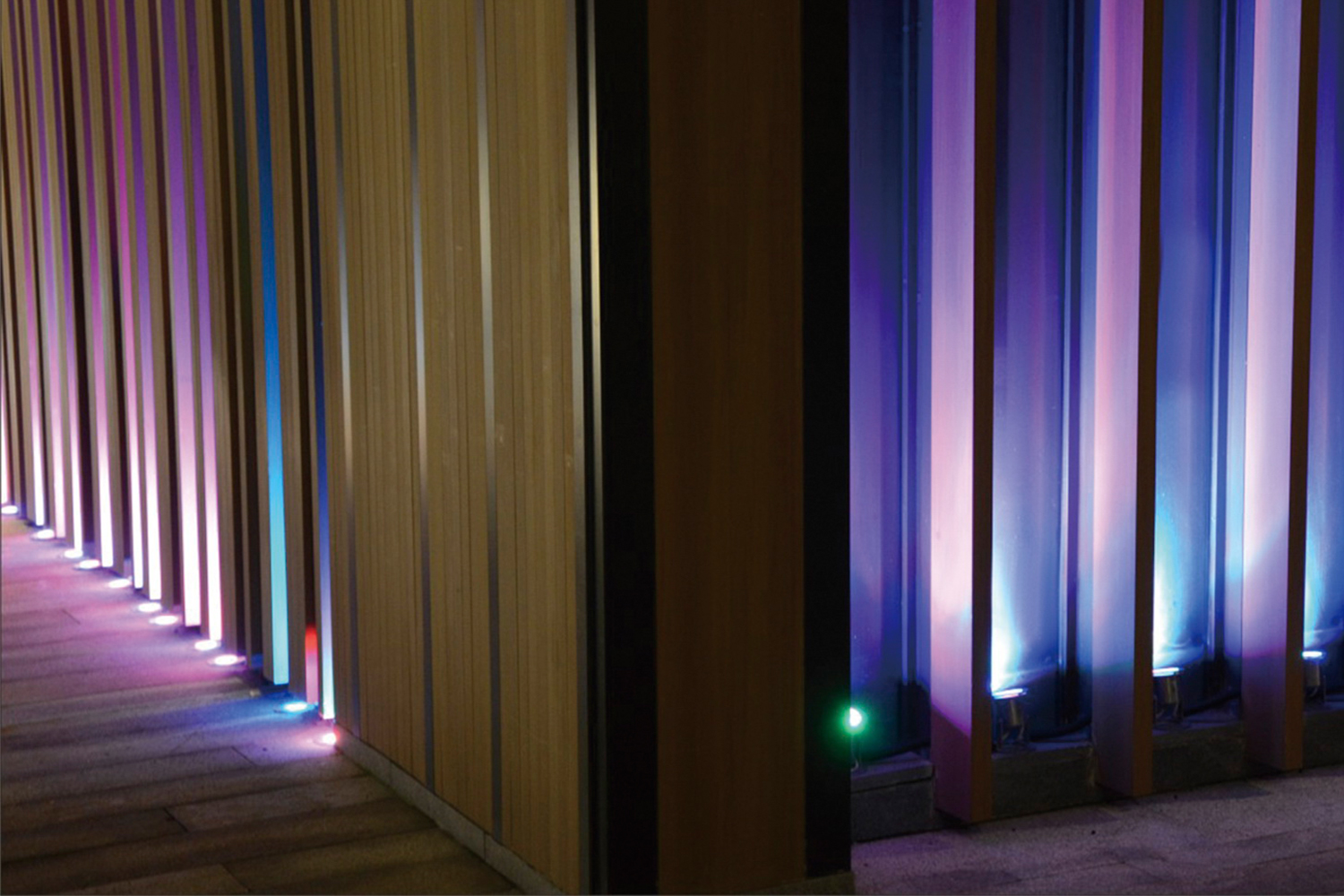

■ Imephu yeprojekthi


  • Egqithileyo
  • Okulandelayo:

  • Zonke iimveliso ziya kupakishwa zize zithunyelwe kuphela emva kokuba zonke iimveliso zigqithile kwiimvavanyo ezahlukeneyo zesalathiso, kwaye ukupakishwa yeyona nto ibalulekileyo engenakuhoywa. Njengoko izibane zensimbi ezingenasici zinzima kakhulu, sikhethe ezona zilungileyo kunye nezona zilukhuni ibhokisi eneenkcukacha zokupakisha ukuqinisekisa ukuba imveliso inokukhuseleka kakuhle kwimpembelelo okanye kumaqhuma ngexesha lokuhamba. Imveliso nganye ye-Oubo ihambelana nebhokisi yangaphakathi eyahlukileyo kwaye iya kukhetha uhlobo lokupakisha oluhambelana nobume bayo, imeko kunye nobunzima bempahla ethunyelwayo ukuqinisekisa ukuba imveliso nganye ipakishwe ngaphandle kokushiya umsantsa phakathi kwebhokisi kunye nemveliso ilungisiwe. ibhokisi. Ukupakisha kwethu rhoqo yibhokisi yangaphakathi emdaka eyenziwe ngamnyama kunye nebhokisi engaphandle emdaka. Ukuba umthengi kufuneka enze ibhokisi yemibala ethile kwimveliso, sinokuyiphumeza, okoko nje wazisa ukuthengisa kwethu kwangaphambili, siya kwenza uhlengahlengiso oluhambelanayo kwinqanaba lokuqala.



    Njengomenzi wobungcali wezibane zangaphandle zensimbi ezingenasici, u-Eurborn uneseti yakhe yovavanyo olupheleleyo lweelebhu. Asinakuthembela kubantu besithathu abathe bakhutshelwa ngaphandle kuba sele sinothotho lwezixhobo zobuchwephesha eziphambili nezigqibeleleyo, kwaye zonke izixhobo zihlala zihlolwa kwaye zigcinwa. Qinisekisa ukuba zonke izixhobo zinokusebenza ngesiqhelo kwaye zenze uhlengahlengiso kwangexesha kunye nolawulo lweemvavanyo ezinxulumene nemveliso okokuqala ngqa.

    Indibano yokufundela yase-Eurborn inoomatshini abaninzi abaziingcali kunye nezixhobo zovavanyo ezinje ngee-oveni ezifudumeza umoya, oomatshini bokuphelisa umoya, amagumbi ovavanyo lwe-UV ye-ultraviolet, oomatshini bokumakisha i-laser, amagumbi ovavanyo lobushushu rhoqo kunye nokufuma, oomatshini bokuvavanya ityuwa, iinkqubo zohlalutyo olukhawulezayo lwe-LED, ukusasazeka kweLuminous Inkqubo yovavanyo (uvavanyo lwe-IES), i-UV ephilisa i-oveni kunye ne-elektroniki yokumisa i-oveni okomatshini njalo njalo. Singafezekisa inkqubo ebanzi yolawulo lomgangatho kuyo yonke imveliso esiyivelisayo.

    Imveliso nganye iya kuvavanywa i-100% yovavanyo lweparameter, i-100% yokuvavanywa kokuguga kunye ne-100% yovavanyo lwamanzi. Ngokweminyaka emininzi yamava emveliso, imeko-bume ejongene nayo yile mveliso ingamakhulu amaxesha okomelela ngakumbi kunezibane zangaphakathi zangaphandle kunye nasemhlabeni ezibane zentsimbi. Siyazi kakuhle ukuba isibane asinakubona naziphi na iingxaki ngexesha elifutshane kwiindawo eziqhelekileyo. Kwiimveliso ze-Eurborn, sijolise ngakumbi ekuqinisekiseni ukuba isibane sinokufikelela kwintsebenzo ezinzileyo yexesha elide kwiindawo ezahlukeneyo ezirhabaxa. Kwimeko yesiqhelo, uvavanyo lwethu lwendalo olulinganisiweyo luphindaphindeka nzima. Indawo engqongileyo inokubonisa umgangatho wezibane ze-LED ukuqinisekisa ukuba akukho mveliso ineziphene. Kuphela kusemva kokuba kuhlolwe ngokusebenzisa iileya apho u-Ober eza kusihambisa kweyona mveliso intle kuthi Isandla somthengi.

    测试



    I-Eurborn ineziqinisekiso ezifanelekileyo ezifana ne-IP, i-CE, i-ROHS, i-patent yokubonakala kunye ne-ISO, njl.
    Isatifikethi se-IP: Umbutho woKhuseleko lweZibane weHlabathi (i-IP) uhlela izibane ngokwenkqubo yazo yokufaka iikhowudi kwi-IP yokungabinalo uthuli, umba wangaphandle oqinileyo kunye nokungena kwamanzi. Umzekelo, i-Eurborn ikakhulu ivelisa iimveliso zangaphandle ezinje ngokungcwatywa kunye nezibane zasemhlabeni, izibane eziphantsi kwamanzi. Zonke izibane zangaphandle zensimbi ezingenasici zihlangabezana ne-IP68, kwaye zinokusetyenziselwa ukusetyenziswa okungaphakathi okanye ukusetyenziswa kwamanzi. Isatifikethi se-EU CE: Iimveliso aziyi kusongela iimfuno ezisisiseko zokhuselo lokhuseleko lomntu, lwezilwanyana kunye nemveliso. Imveliso yethu nganye ineziqinisekiso ze-CE. Isatifikethi se-ROHS: Ngumgangatho onyanzelekileyo osekwe ngumthetho we-EU. Igama elipheleleyo "nguMyalelo wokuThintela ukuSetyenziswa kweziNongo ezithile ezinobungozi kwizixhobo zombane neze-elektroniki". Isetyenziswa ikakhulu ekumiseni izinto kunye nakwimigangatho yenkqubo yeemveliso zombane neze-elektroniki. Iluncedo ngakumbi kwimpilo yabantu kunye nokukhuselwa kwendalo. Injongo yalo mgangatho kukususa ilothe, i-mercury, i-cadmium, i-hexavalent chromium, i-polybrominated biphenyls kunye ne-polybrominated diphenyl ethers kwiimveliso zombane neze-elektroniki. Ukuze sikhusele ngcono amalungelo kunye neemfuno zeemveliso zethu, sinesethu isiqinisekiso sokubonakala kwelungelo elilodwa lomenzi weemveliso ezininzi eziqhelekileyo. Isatifikethi se-ISO: Uchungechunge lwe-ISO 9000 lolona mgangatho udumileyo phakathi kwemigangatho emininzi yamanye amazwe esekwe yi-ISO (Umbutho waMazwe ngaMazwe wokuBekwa emgangathweni). Lo mgangatho ayikokuvavanya umgangatho wemveliso, kodwa kuvavanya ulawulo lomgangatho wemveliso kwinkqubo yemveliso. Umgangatho wolawulo lombutho.

    证书



    Umzimba wesibane wemveliso wenziwe ngentsimbi ye-SNS316L. I-316 yentsimbi engenasici iqulethe i-Mo, ebhetele ekumelaneni nomhlwa kune-304 yentsimbi engenasiphelo kwindawo ezinobushushu obuphezulu. I-316 ikakhulu inciphisa umxholo we-Cr kwaye yonyusa umxholo we-Ni kwaye inyuse i-Mo2% ~ 3%. Ke ngoko, amandla ayo okulwa nomhlwa womelele kunama-304, alungele ukusetyenziswa kwimichiza, kumanzi olwandle nakwezinye iindawo.

    2.Umthombo wokukhanya kwe-LED wamkela uphawu lwe-CREE. I-CREE ngumvelisi okhanyayo okhanyayo kunye nomenzi we-semiconductor kwimarike. Uncedo lwe-chip luvela kwizinto ze-silicon carbide (SiC), enokusebenzisa amandla amaninzi kwindawo encinci, ngelixa uthelekisa Obunye ubuchwephesha obukhoyo, izinto kunye neemveliso zivelisa ubushushu obuncinci. I-CREE LED idibanisa amandla e-InGaN asebenza ngamandla kunye nezinto ze-G · SIC® zeenkampani zibe yinto enye, ukuze amandla aphezulu kunye nokusebenza kakuhle kwe-LED kufezekise eyona ndleko yokusebenza.

    3.Iglasi isebenzisa iglasi enomsindo + yinxalenye yesikrini sesilika, kwaye ubukhulu beglasi yi-3-12mm.

    I-4.Inkampani ihlala ikhetha i-aluminium ye-aluminium ephezulu ene-thermal conductivity engaphezulu kwe-2.0WM / K. Imigca yealuminium isetyenziswa njengesixhobo sokuhambisa ubushushu ngokuthe ngqo kwii-LEDs, ezinxulumene ngokusondeleyo nobomi bokusebenza kwee-LED. Isixhobo se-aluminium esisezantsi sokuqhuba esine-conduction kunye nobuchule bokuhambisa ubushushu, kwaye kufaneleke ngakumbi kwiimveliso ezifuna ukusasazeka kobushushu obuphezulu, ngakumbi ii-LED ezinamandla aphezulu.
